Mini 3-Port 10/100/1000T + 1-Port 100/1000X SFP Hybrid Interface Ethernet Adaptor with PD and PoE Splitter Function
Overview

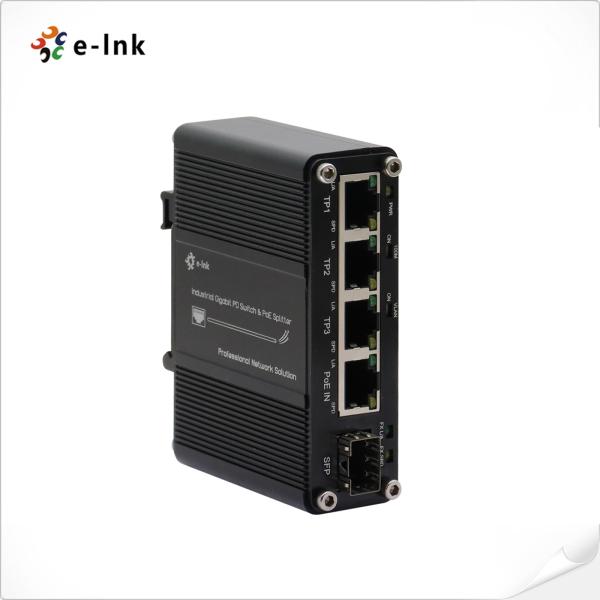

The LNK-IMC103G-SFP-PD product is a Hybrid Interface Ethernet Adaptor.
This adaptor is combined with four 10/100/1000M RJ-45 ports and one 100/1000M optical fiber SFP slot.
The “PoE IN” RJ-45 port accepts PoE (Power over Ethernet) power
input from the remote PSE ethernet switch or PoE injector, so the
adaptor can work without additional power supply and support 5~24VDC output (Max 3A, Max 60W) function. The additional 100Base-FX/1000Base-X self-adaption SFP port can
extend the RJ-45 port to long-distance optical fiber interface.
The LNK-IMC103G-SFP-PD product is suitable for 35mm DIN rail installation. An additional
L-shaped bracket can be used to replace the DIN rail plate, so the
user can install the adaptor on the wall or a flat surface.
Features
► 100/1000BASE-X SFP slots for SFP type auto detection
► 3x 10/100/1000M RJ-45 port
► 1x PoE PD type 10/100/1000M RJ-45 port
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
► Support 5~24VDC output (Max 3A, Max 60W)
► Supports DIN-Rail and Wall-mount installation
► -20°C to 50°C operating temperature
Specifications
Ethernet |
Standards: | IEEE802.3 10Base-T |
IEEE802.3u 100Base-TX/FX |
IEEE802.3ab 1000Base-T |
IEEE802.3z 1000Base-X |
IEEE 802.3az Energy Efficient Ethernet (EEE) |
IEEE802.3at/bt Power over Ethernet |
Interface |
Connector: | 4x RJ45 |
Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
Phoenix Connector | Support 5-24VDC output (Max3A, Max60W) |
Electrical and Mechanical |
LED Indicators: |
FX L/A: | Data LINK Status |
FX SPD | FX SPD Status |
PWR: | Power Status |
100M/1000M: | Fiber LINK Status |
DIP Switch Function: |
100M DIP Switch | ON - Enabled OFF - Disabled |
VLAN DIP Switch | ON - Enabled OFF - Disabled |
Dimensions (WxDxH): | 95 x 82 x 30 mm |
Weight: | 0.25Kg |
Casing: | Aluminum Case |
Mounting Options: | DIN-Rail / Wall-mount |
Environmental |
Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
Relative Humidity: | 90% max, non-condensing |
MTBF | > 200,000 hrs |
Regulatory Approvals |
ISO9001, CE, FCC, RoHS |
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
)
Order Information
Model | Description |
LNK-IMC103G-SFP-PD | Mini 3-Port 10/100/1000T + 1-Port 100/1000X SFP Hybrid Interface
Ethernet Adaptor with PD and PoE Splitter Function |
Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is
included. |
