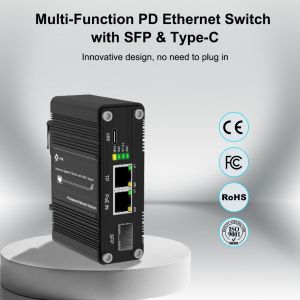

Mini Industrial Gigabit Ethernet PD Switch with Type-C Output
Product Advantages
► Supported standard: USB 2.0/3.0, USB PD 2.0, IEEE 802.3 10Base-T
/100Base-TX / 1000Base-T, IEEE 802.3u 100Base-FX, IEEE 802.3z
1000Base-X, IEEE 802.3bt, IEEE 802.3at
► USB PD 3.0 charging protocol compatible
► 1x Type-C USB 3.0 port
► 1x 10/100/1000M RJ-45 port
► 1x PoE PD 10/100/1000M RJ-45 port
► 1x 100Base-FX / 1000Base-X auto detection SFP port
► Supports DIN-Rail and Wall-mount installation
Technical Indexe
Ethernet |
| |
Interface |
Ethernet Port: | 2 x RJ45 |
USB Port: | 1 x Type-C |
Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
Electrical and Mechanical |
USB PD Charging Protocol: | 5V/9V/12V/15V/20V (Max 3.0A, 60W) |
LED Indicators: |
USB | USB Status |
FX L/A: | Data LINK Status |
SPD | SPD Status |
PWR: | Power Status |
SFP Port | |
Pin Polarity | |
100M/1000M: | Fiber LINK Status |
Dimensions (WxDxH): | 95 x 70 x 30 mm |
Weight: | 0.25Kg |
Casing: | Aluminum Case |
Mounting Options: | DIN-Rail / Wall-mount |
Environmental |
Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
Relative Humidity: | 5% to 95% non-condensing |
MTBF | > 200,000 hrs |
Regulatory Approvals |
ISO9001, CE, FCC, RoHS |
Overview
The LNK-GE-USB-PD product is Mini Industrial PD Ethernet Switch
with Type-C Output. This switch offers a flexible connection method
for a Type-C USB powered device to join in network through RJ-45
port or optical fiber interface.
This switch is combined with 1 x Type-C USB 3.0 port, 2 x
10/100/1000M RJ-45 ports and 1 x 100/1000M SFP port. The“PoE IN”RJ-45 port accepts PoE (Power over Ethernet) power input from the
remote PSE switch or PoE injector, so the switch can work without
additional power supply.
Application
Model | Description |
LNK-GE-USB-PD | Mini Industrial Gigabit Ethernet PD Switch with Type-C Output |
Mounting Options | Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
