Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X
SFP Ethernet Switch
with 12~48VDC Input and Voltage Booster
Mini Industrial POE Switch Advantages
► 3 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at
PoE+ Injector (Port-1 to Port-3)
► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► 12~48VDC wide range power input with power booster function
► Up to 90W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE
budget (12VDC)
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating
temperature
Overview
LNK-IMC103GP-SFP Series is a Mini Industrial 3-Port 10/100/1000T
802.3at PoE + 1-Port 100/1000X
SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage
Booster. This unmanaged industrial
solar power PoE switch is designed to match the critical industrial
standards. With reliable and simple
operation against vibration and shock, and wide operation
temperature range, it could match a variety
of harsh environment. The switch complies with CE and FCC
standards, and passed the 100% burning
test to ensure that it will fulfill the needs of industrial
applications. It is a good choice for an economical
solution for industrial Ethernet connections.

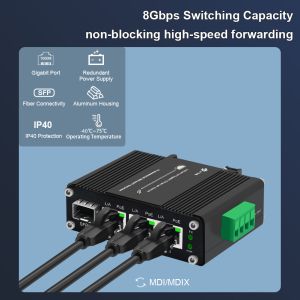

Mini Industrial POE Switch Picture
Technical Indexes
Ethernet |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX |
| IEEE802.3ab 1000Base-T |
| IEEE802.3z 1000Base-X |
| IEEE 802.3x Full-Duplex Flow Control |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer Memory: | 4 Mbit |
| Switch Fabric: | 12Gbps |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2K MAC Addresses |
| Interface |
| Connector: | 3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3) |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| PoE (Power over Ethernet) |
| Standard: | IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3af Power over Ethernet |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC),
60-watt PoE budget (12VDC) |
| Electrical and Mechanical |
| Input Power: | 12~48VDC, 2-pin terminal block |
| Power Consumption: | <95W (Non-PoE<6W) |
| LED Indicators: |
| PWR: | Power Status |
| L/A: | Ethernet LINK Status |
| FX: | Fiber LINK Status |
| PoE: | PoE Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.3Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals |
| ISO9001, CE, FCC, RoHS |
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
Application
Ordering Information
| Model | Description |
LNK-IMC103GP-SFP | Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE +
1-Port 10/100/1000T Ethernet Switch |
SFP Options | ► SFP option. Please select your SFP on our SFP Options Page
(Industrial SFP). ► SFP module is to be purchased separately. |
| Mounting Options | ►Default DIN-Rail Bracket installed; Wall Mount Bracket is
included. |
| Power Options | ►12~48VDC Power Supply. Open Wire for Terminal Block ►Power Supply is to be purchased separately. |
