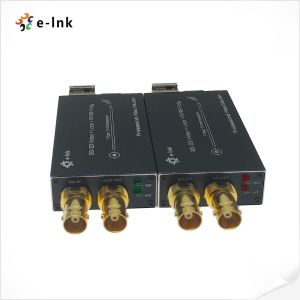

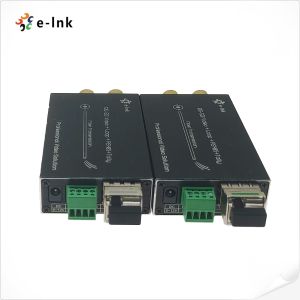

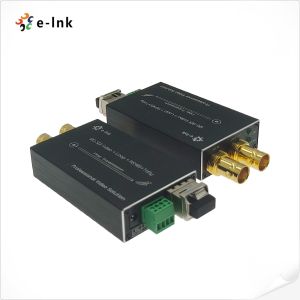

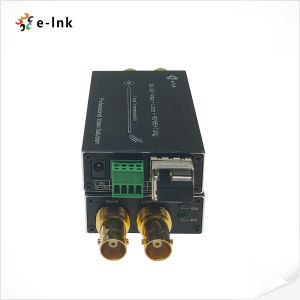

Mini 12G-SDI to Fiber Converter with Tally and RS485
Advantages
► Each SDI channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and
ST-259(SD)
► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps,
2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps
► Directly compatible with 12G/6G/3G-SDI camera systems
► Long transmission capability at least 10 km (6.2miles), up to 80 km
► Supports Tally and Backward RS485
► Supports hot swapping and hot plugging
► Full digital non-compression broadcast level transmission;
► super optic dynamic range and free of adjustment;
► fiber optic WDM/CWDM/DWDM technique;
► Supports 4K*2K(3840*2160@60Hz),1080P,1080I,720P.
Overview
LNK-M12G-1V1T1D Series Mini-type 12G-SDI Fiber Converter supports 1Ch 12G Video (audio
embedded), 1Ch Tally signal and 1Ch Backward RS485 transmitted via
fiber optical cable, and monitor the signal locally over a 12G loop
output. E-link 12G Video over Fiber Converters includes one
transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz),
1080P,1080I, 720P.
Technical Indexes
Formats | Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And
ST-259(SD) |
Compatible | Compatible with DVB-ASI and AES10 (MADI) |
Input | 1 x 12G-SDI on BNC |
Output | 1 x LC optical fiber |
1 x 12G-SDI loop-out on BNC |
Supported Resolution | HDTV 4K*2K, 1080P, 1080I, 720P |
Resolution range | 3840*2160@60Hz |
Input cable specification | ≤70m@12G SDI Belden 1694A |
Output cable specification | ≤70m@12G SDI Belden 1694A |
Data type | Backward Tally |
Data type | Backward RS485 |
Optical transmission bandwidth | 270MHz～12GHz |
Power | 5-15 VDC |
Power Consumption | 2 W (Max.) |
Dimensions (LxWxH) | 80 x 40 x 20 (mm) |
Storage Temperature | -40℃～80℃ |
Operating Temperature | -40℃～85℃ |
Ordering Information
Model | Description |
LNK-M12G-1V1T1D-20 | Mini-type 12G-SDI to Fiber Converter with Tally, Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
