10 100Base Tx To 100Base Fx Ethernet Media Converter Micro Type
Micro type 10/100Base-Tx to 100Base-Fx Ethernet Media Converter
Ethernet Media Converter Advantages
► 1-port 10/100BASE-T RJ45 with auto MDI / MDI-X function
► 1 SC Port, 100Base-FX
► Micro type design
► Supporting full-duplex and half-duplex and its auto-sensed
► Support 9k jumbo frame
► Supporting auto-sense of MDI/MDI-X, facilitating system
commissioning and installation
► Options in single mode dual fiber, multi-mode dual fiber, and
single mode in single fiber
Overview
LNK-M1100 series 10/100Mbps adaptive Fast Ethernet media converter
adopts switching technology
to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u
standards. Presently it supports two types of media network
connections: 10Base-T/100Base-TX, and 100Base-FX, inter-converting
electrical signals of 10Base-T/100Base-TX/ twisted pairs with
optical signals of 100Base-FX. It extends the transmission distance
of network from 100m via copper cable to 20km (Up to 120km) via
fiber optical cables. It supports transmission in multi-mode dual
fiber, single mode dual fiber and single mode single fiber.

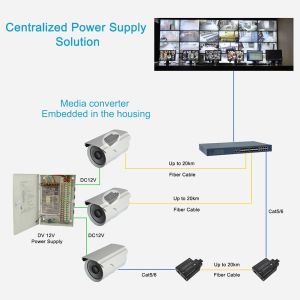

This media converter is super mini in size, it’s easy to install
and integrated in other equipment.
Technical Indexes
| Parameter | Specifications |
| Access mode | 10/100Mbps Fast Ethernet |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, |
| Fiber Port | 1 SC Fiber Port, 100Base-FX |
| Wavelength | 1310nm/1550nm |
| Transmission distance | multi-mode Dual-fiber: 2Km single mode Dual-fiber: 20/40/60/80 Km single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m |
| Port | One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One optical port: Multi-mode Dual-fiber: SC (50, 62.5/125μm) Single mode Dual-fiber: SC (9/125μm) Single mode Single fiber: SC (9/125μm) |
| Conversion means | Media conversion |
| LFP | Not Support |
| BER | <10-9 |
| MTBF | 100,000 hours |
| LED indicator | PWR (Power supply) TX (LINK10/100, TP cable rate 10/100M) FX/ACT (Optical link action /TP cable packet forwarding action) |
| Power supply | DC 5~15V |
| Power consumption | 3W |
| Operating temperature | 0~45ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions (W x D x H) | 62 x 44 x 18 mm |
Information
| Model | Description |
|
| LNK-M1100 | Micro type Media Converter: 10/100Base-T to 100Base-F, Multi-mode,
2km, 1310nm, SC, standalone, external power adaptor |
| LNK-M1100-20 | Micro type Media Converter: 10/100Base-T to 100Base-F, single mode,
20km, 1310nm, SC, standalone, external power adaptor |
| LNK-M1100-40 | Micro type Media Converter: 10/100Base-T to 100Base-F, single mode,
40km, 1310nm, SC, standalone, external power adaptor |
| LNK-M1100-60 | Micro type Media Converter: 10/100Base-T to 100Base-F, single mode,
60km, 1550nm, SC, standalone, external power adaptor |
| LNK-M1100-80 | Micro type Media Converter: 10/100Base-T to 100Base-F, single mode,
80km, 1550nm, SC, standalone, external power adaptor |
| LNK-M1100S-20A | Micro type Media Converter: 10/100Base-T to 100Base-F, WDM (single
fiber bi-direction), 20km, 1310nm TX/1550nm RX, SC, standalone,
external power adaptor |
| LNK-M1100S-20B | Micro type Media Converter: 10/100Base-T to 100Base-F, WDM (single
fiber bi-direction), 20km, 1550nm TX/1310nm RX, SC, standalone,
external power adaptor |
