Full Digital 10Gbps DVI Optical Fiber Transceiver No Compression
DVI Optical Transceiver (No Compression)
DVI Fiber Converter Advantages
- Broadcast quality, civilian price
- Full digital, zero compression and zero delayed
- Support the transfer rate of 10 Gbps
- The highest resolution: 1920 * 1080 @ 120Hz 4 k * 2 k @ 30 Hz
- Support 3D
- Support HDCP standard
- Compatible with transmission of DVI signal
- Support hot plugging of DVI interface
- Support unvarnished transmission of RS232 serial port data
- Low energy consumption, long distance,
- Plug and play, do not need to set
Technical Indexes
Optic fiber interconnection between the transmitter and receiver
The number/type: 2-way fiber or 1-way fiber
Connector: 2 LC connectors
Working distance:
Single mode: 10 km customization: 30 km, 60 km
Multi mode: 300 m
Rated peak value wavelength: from 850 nm to 1310 nm
Data rate: 10 G
Transmission power:
Single mode: - 5 DBM, typical
Multi mode: - 5 DBM, typical
Largest receiver sensitivity
Single mode: - 18 DBM, typical
Multi mode: - 12 DBM, typical
Video:
HDCP: conform to the requirements of the high bandwidth digital
content protection.
Standard: DVI 1.0; HDCP1.1
Video input:
1-way single link DVI
Connector: 1 type A DVI socket
Balance: automatically to balance the 10 meters length cable
Video output
1-way single link DVI
1 type A DVI socket
Overview
This product is a broadcast level high-definition DVI optical
transceiver, converting DVI signal into 10G difference signal
through the patent conversion chip. The optical module and optical
fiber are used to send and receive, which realized remote
transmission of DVI multimedia signal. Through light module of
different transmission distance, it realized the long distance
transmission as far as 60 km. This transmission product has no
loss, no transmission delay and can meet various requirements of HD
long distance transmission. It supports DVI and 3D video signal
transmission. The EDID can be reversed and it supports HDCP. The
resolution can respectively up to 720 p / 60 Hz, 1080 I / 60 Hz,
1080 p /30 Hz, 1080 p / 60 Hz, 1080 p / 120 Hz and it supports 7.1
-channel PCM surround sound and audio compression. supports hot
plugging of DVI interface and with low energy consumption and long
distance. It has no compression, zero delay, plug and play and the
compatibility is strong, so it can achieve a more accurate display.
850 nm multi-mode and 1310 nm single-mode fiber model are provided.

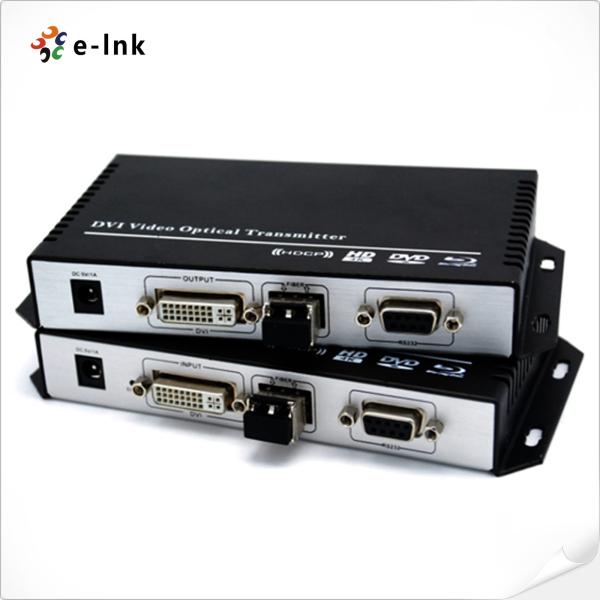

DVI optical transceiver is a combination of transmitter and
receiver, which realized the perfect transmission from pixel to
pixel of DVI video image. The product is compact and its small
shell allows it can be concealed behind the flat panel display.
DVI optical transceiver is part of the large, complete system of
optical fiber transmission products. It and other HDMI, VGA optical
transceiver forms a series of high definition video signal
extender. It can realize various options of point-to-point
transmission. The transmission mode of one sender with more than
one receiver can be achieved by optical divider.
DVI optical transceiver is very suitable for the wide application
environment of transporting content with the highest quality, long
distance transportation and high resolution. Due to the inherent
safety and the anti-jamming of optical fiber transmission, optical
fiber application is more suitable for government, army and medical
environment. The DVI optical transceiver applied the LC type
connectors, which is industrial standard.
Ordering Information
| Optical module | Optical fiber selections | Transmission distance |
| LNK-DVI-M-D | Multi mode(two-fiber) | 300 meters |
| LNK-DVI-M-S | Multi mode(one-fiber) | 300 meters |
| LNK-DVI-S-D | Single mode(two-fiber) | 10 kilometers |
| LNK-DVI-S-S | Single mode(one-fiber) | 10 kilometers |
