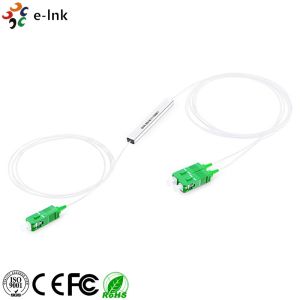

High isolation PDL PoE Power Splitter Mini PLC Splitter Module

Ask Lasest Price
Brand Name :	E-link
Certification :	ROHS,FCC,CE
Price :	$29.9-389
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	1000pcs/month
Delivery Time :	5-12 working days

Add to Cart

Product Details
Company Profile

High isolation PDL PoE Power Splitter Mini PLC Splitter Module

High isolation PDL PoE Power Splitter Mini PLC Splitter Module

Mini Module PLC Splitter

Advantages

1. Low Insertion Loss (IL)

2. High isolation

3. Low Polarization Dependent Loss (PDL)

4. Compact design

5. Wide operating wavelength range

6. Good channel-to-channel uniformity

7. High reliability and high stability

8. Telcordia GR-1209-CORE-2001 compliant

9. Telcordia GR-1221-CORE-1999 compliant

10. YD/T-1272Q compliant

11. Q/CT-2295 compliant

12. RoHS-6 compliant (lead free)

Technical Indexes

Parameters	1×N Mini Module PLC Splitters
Operating Wavelength (nm)	1260～1650
Port Configuration	1×2	1×4	1×8	1×16	1×32	1×64
Max Insertion Loss (dB) (P/S Grade)	4.1/4.3	7.4/7.6	10.5/10.8	13.8/14.0	16.8/17.2	20.8/21.3
Max Loss Uniformity (dB)	0.6	0.7	0.8	1.2	1.5	2.0
Max PDL (dB)	0.2			0.25		0.35
Min Return Loss (dB)	55
Min Directivity (dB)	55
Max Wavelength Dependent Loss (dB)	0.5			0.8		1.0
Max Temperature Stability (dB)	0.5
Operating Temperature (℃)	-5～75
Storage Temperature (℃)	-40～85
Device Dimension L×W×H (mm)	60×7×4			60x12x4	80x20x6	100x40x6

Parameters	2×N Mini Module PLC Splitters
Operating Wavelength (nm)	1260～1650
Port Configuration	2×2	2×4	2×8	2×16	2×32
Max Insertion Loss (dB)	4.5	7.9	11.3	14.7	17.8
Max Loss Uniformity (dB)	0.9	1.0	1.2	1.5	1.8
Max PDL (dB)	0.3				0.35
Min Return Loss (dB)	55
Min Directivity (dB)	55
Max Wavelength Dependent Loss (dB)	0.5			0.8
Max Temperature Stability (dB)	0.5
Operating Temperature (℃)	-5～75
Storage Temperature (℃)	-40～85
Device Dimension L×W×H (mm)	60×7×4			60x12x4	100x20x6

Overview
The E-link mini module PLC (Planar Lightwave Circuit) splitter is a type of optical power management device with mini module package fabricated using silica optical waveguide technology. It is widely used in PON/ODN networks to realize optical signal power splitting with 1xN or 2xN splitting ratio. E-link provides a series of customized mini module PLC splitters to meet different requirements on port configuration, cable type, fiber length, input connector, and output connector.
